Boss 120/208V Electrical Panels
This model of the BOSS Electrical Panel is rated for 120/208V. In typical rig configurations, this panel is perfect for managing power for lighting and general duty outlets and equipment. It is the perfect solution for any setting that requires a NEMA 4 panel.
Customize this with BOSS 96, Powertite or Arktite receptacles, with or without an extension box, and you’ve got an incredibly convenient and flexible set up to suit any application.C/W BOSS -2012EXT (Optional)
- 20" wide x 12" face x 6" deep (line dimensions)
- Mounting tabs match panel tabs (14-9/16" center-to-center mounting tabs)
- Gasket cover c/w bolts
- Customize receptacle placement
Panel Sizes & Ratings
| Hammond Enclosure Size |
Number | Number Of Breakers |
Amperage (3K 3W) |
Interruption Rating QOB 240V |
Breaker Size | Receptacles | Extension Box |
|---|---|---|---|---|---|---|---|
| 24X20X6 | D6 | 6 or 8 | 100A | 10KA | 15-100A | 0 - 8 | EXT |
| 30X20X6 | E6 | 10 | 100A | 10KA | 15-100A | 0 - 10 | EXT |
| 40X20X6 | F6 | 14 | 225A | 10KA | 15-100A | 0 - 14 | NO |
Interiors are typically 18, 24, 30, or 42 circuits. One breaker is allotted for each 3-circuit spacing to align with door-mounted switches. One switch/breaker for every 3 circuits.
■ Provide specifications when ordering.

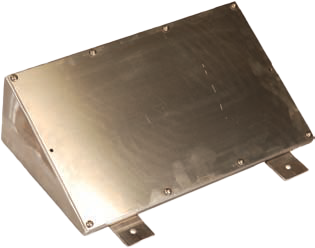

Angle Extension Box
- 20” wide x 12” face x 6” deep (line dimensions)
- Mounting tabs match panel tabs (14-9/16” center-to center mounting tabs)
- Gasket cover c/w bolts
- Customize receptacle placement
| Model | Description |
|---|---|
| BOSS-C-2012EXT | 20x12x6 |

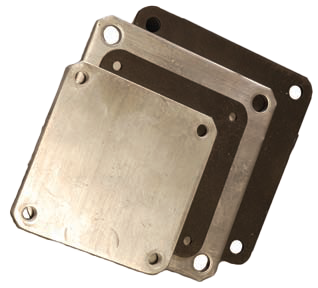

Blank Cover Plates
| Model | Description |
|---|---|
| BOSS-BC30 | 30A (3.5” x 3.5” x 3/16”) |
| BOSS-BC60/100 | 60A or 100A (4.25”x4.25”x3/16”) |
| BOSS-BCG30 | 30A Gasket |
| BOSS-BCG60/100 | 60-100A Gasket |
